ENGAGE4X4 Panhard bar adjustable on one side with TÜV parts certificate
Raising the suspension on a Land Rover Defender or Discovery means more than just installing new springs and shock absorbers. Many suspension kits are offered with TÜV approval, but one crucial aspect often goes unnoticed: the correct suspension geometry after the lift.
Even with moderate lifts using reinforced or longer springs, the front axle shifts to one side due to the design. This is caused by the standard, non-adjustable Panhard rod. The axle usually moves to the left and is no longer exactly centered under the vehicle.
Effects of uncorrected axle misalignment
A laterally offset front axle means that the front and rear axles are no longer perfectly aligned. The vehicle is technically out of alignment. The consequences are
-
Imprecise steering behavior
-
Increased wear on bushes and bearings
-
Uneven tire wear
-
Pulling of the vehicle when braking
In everyday life in particular, the problem often manifests itself in a slight pulling to the right when braking. Many drivers do not associate this behavior directly with the suspension lift.
Precise correction of the suspension geometry

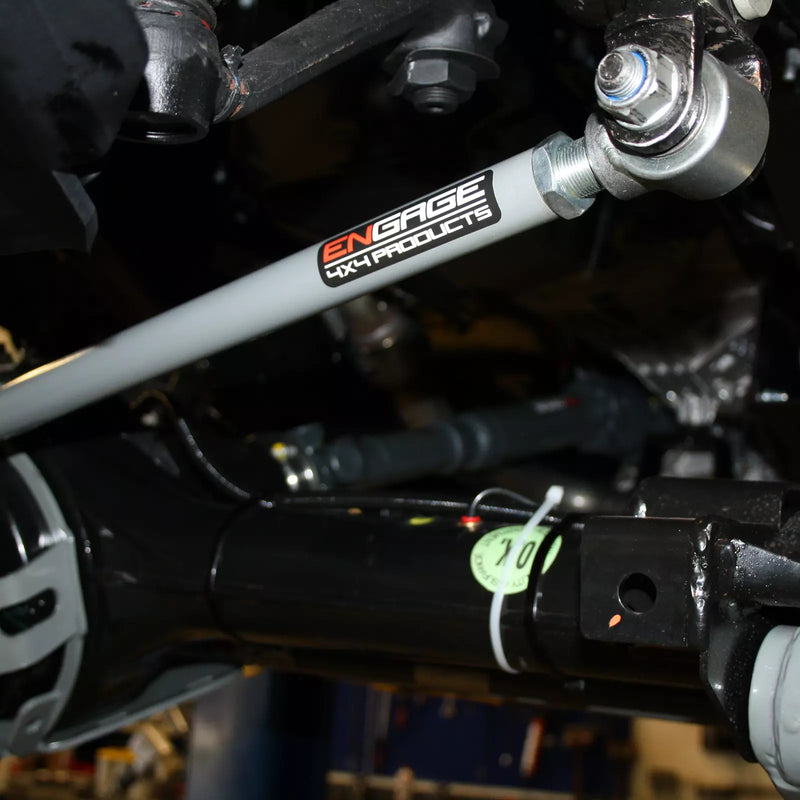

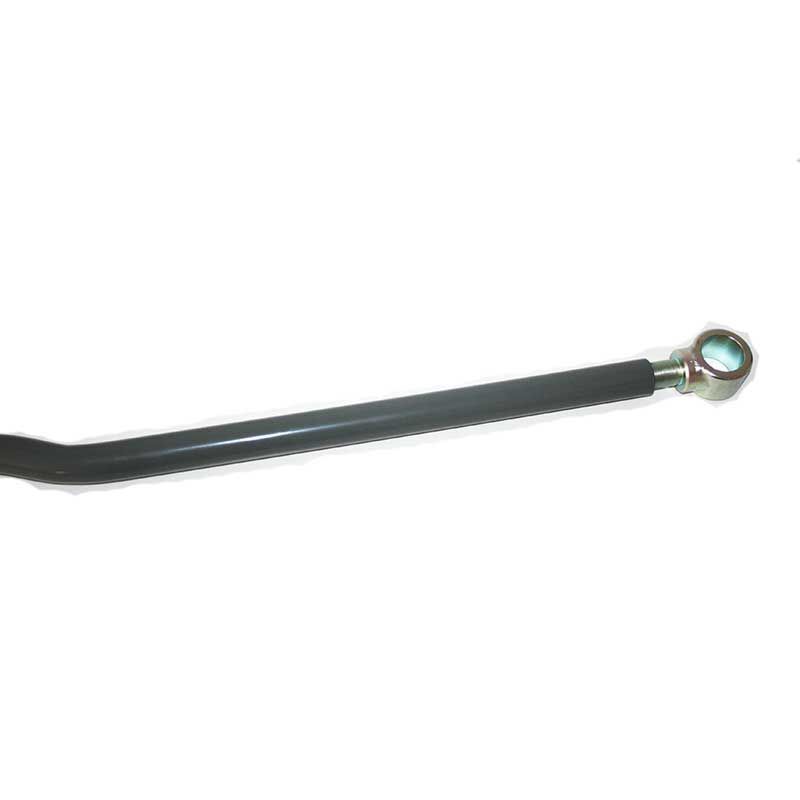

The ENGAGE4X4 Panhard bar, adjustable on one side with TÜV parts certificate, enables the exact centering of the front axle after a lift. The adjustment option allows the axle to be brought back into its correct position.
Technical advantages of the adjustable Panhard rod
Restoring the original axle geometry results in clear advantages:
-
Track-true driving behavior
-
More precise steering
-
More stable braking behavior
-
Reduced wear on suspension components
The vehicle drives in a more controlled and predictable manner, especially at higher speeds or under load.
TÜV-compliant solution for Defender and Discovery
The ENGAGE4X4 Panhard bar has been developed to fit Land Rover Defender and Discovery models and is supplied with a TÜV parts certificate. This enables legally compliant registration and the suspension remains technically correct even after the lift.
If you raise your Defender or Discovery, you should not only replace the visible components, but also consider the entire suspension geometry. An adjustable Panhard rod is a technically sensible and necessary long-term addition for safety and durability.
Advantages of the centrally adjustable ENGAGE4X4 panhard bar
Advantages Information

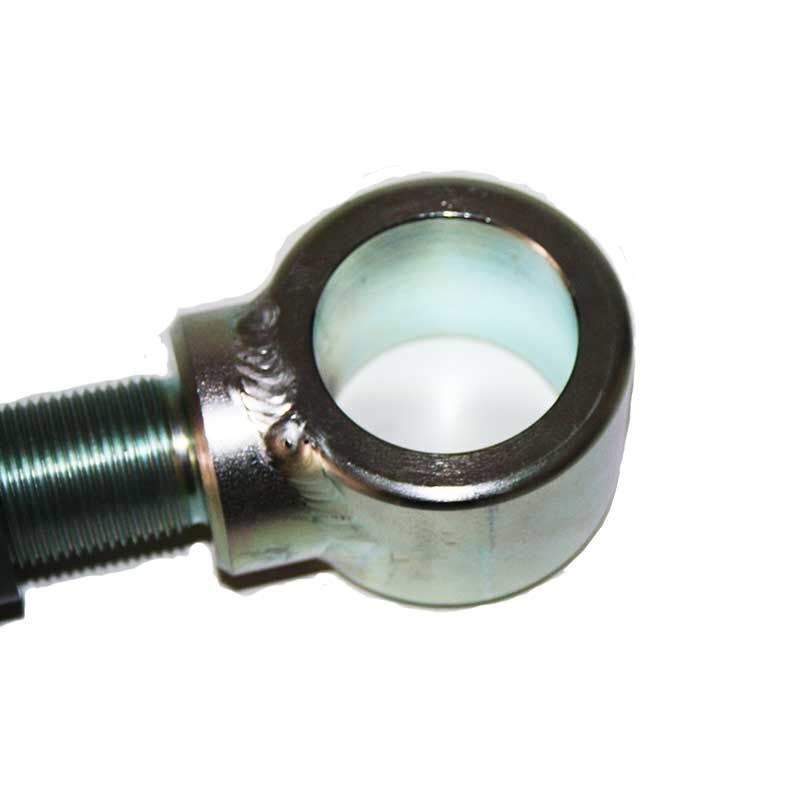

- Material: High-performance steel tube S355
- Thread: Fine thread
- Coating: Galvanized and EPS powder coating
- Thread coating: Blue galvanized
- Please note the bushes are not included in the scope of delivery.
- For use in Discovery 1 and Range Rover Classic, mounting points must be adapted to M16 or suitable bushes with M14 bolt diameter
