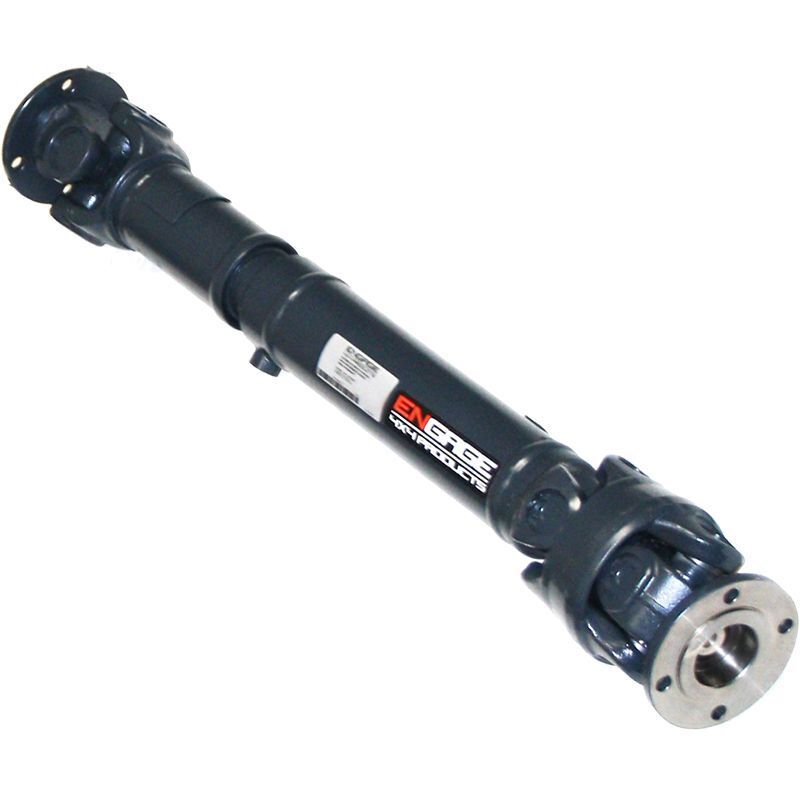

Double Cardan Propshaft for Land Rover Defender – Designed for Lifted Vehicles
The double cardan propshaft for the Land Rover Defender has been specifically developed for vehicles with suspension lifts. From around 25 mm of lift, especially on Defender TD4 models, rotational vibrations in the drivetrain often occur. These vibrations typically appear at speeds of approximately 80 km/h and can place long-term stress on the transfer case and surrounding drivetrain components.
Thanks to its special design, the double cardan propshaft allows the drivetrain to operate at a stress-free working angle. This significantly reduces vibrations and ensures smooth drivetrain operation. Even suspension lifts of up to approximately 100 mm can be implemented in a technically reliable and durable way. For anyone building a Defender for serious off-road use, expedition travel, or heavy-duty applications, this solution becomes a key component for drivetrain reliability.
Technical Solution to Eliminate Drivetrain Vibrations
The integrated double joint ensures a smooth and consistent power transfer even when axle geometry changes. With lifted vehicles, the angle between the transfer case and axle increases significantly. A standard propshaft often operates outside its optimal range under these conditions. The ENGAGE4X4 double cardan propshaft compensates for these angle changes and protects the entire drivetrain from unnecessary stress.

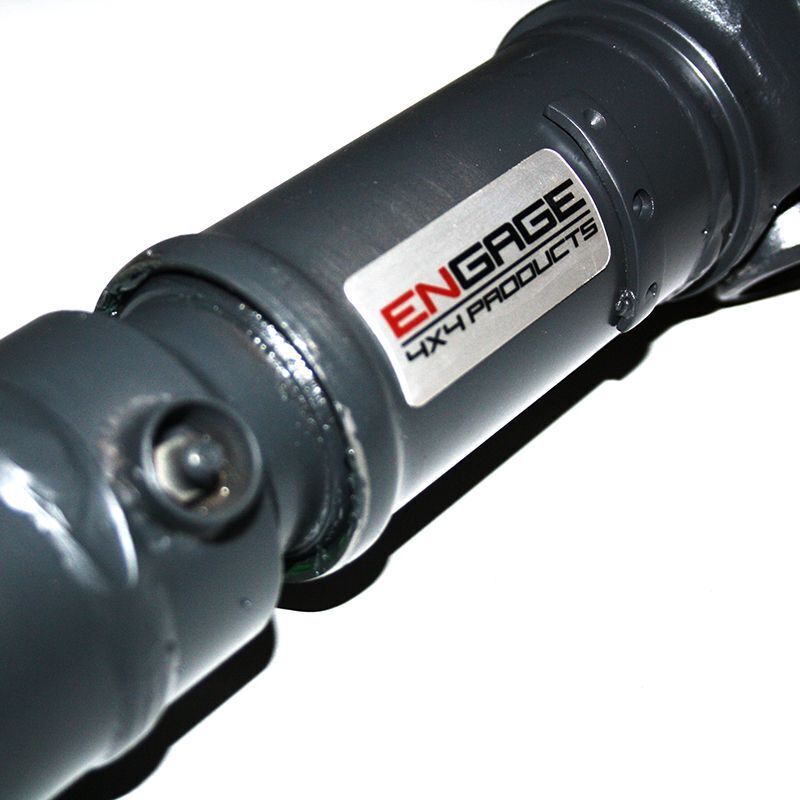

A key feature is the greaseable sliding joint developed by ENGAGE4X4. The grease nipple is positioned in a protected location so maintenance remains possible even after heavy off-road use. In addition, the sliding joint is sealed with a Simmering to prevent the ingress of dirt and water. The plastic-coated spline reduces wear and significantly increases service life.
Long-Term Testing Under Extreme Conditions
Real-world testing plays a crucial role in product development. In 2018, a journey of approximately 20,000 kilometers from Germany to Mongolia and back was completed. Around 3,500 kilometers of that trip involved demanding off-road driving across Russia, Kazakhstan, and the Mongolian steppe. At that time, the installed shaft had already completed more than 45,000 kilometers with an 80 mm suspension lift.
Even under these extreme conditions, no failures occurred. This real-world stress test confirms the durability and engineering design of the shaft. Over a period of more than nine years, the construction has been continuously refined, tested, and optimized together with the manufacturer. The result is a double cardan propshaft for the Land Rover Defender that has proven itself in the harshest environments.
Reinforced Components for Maximum Load Capacity
The propshaft is designed to handle high torque loads and extreme axle articulation. It operates smoothly at working angles of up to 35 degrees. Reinforced, greaseable universal joints with a diameter of 30 mm are installed. The shaft provides 110 mm of axial travel, ensuring sufficient compensation during extreme suspension articulation off-road.
The flange is compatible with the original Defender flange, allowing straightforward installation. Manufacturing follows ISO 9001 and TS 16949 standards to ensure consistent production quality.
Compatible Defender Models
The double cardan propshaft for the Land Rover Defender is available for several model variants:
This covers both classic TDI models as well as later TD5 and TD4 variants.
Especially for lifted vehicles, armored vehicles, rally vehicles, or expedition builds, an upgraded propshaft is essential. It ensures that suspension modifications are not only visually impressive but also mechanically reliable in the long term.
Applications in Off-Road and Expedition Use
The double cardan propshaft for the Land Rover Defender is designed for off-road driving, trophy competitions, rally raid vehicles, and heavy expedition vehicles. Off-road driving places significant stress on the drivetrain. Large axle articulation, sudden load changes, and continuous high torque require a strong and precisely engineered solution.
With this propshaft, the Land Rover Defender receives a durable and reliable upgrade for vibration-free drivetrain operation and maximum reliability, both in everyday use and under extreme off-road conditions.
Order Information
-
Part Number EN-1LR700HD: Defender TD4 90–130 – Front axle, all models
-
Part Number EN-1LR680HD: Defender TDI / TD5 90–130 – Front axle, all models
