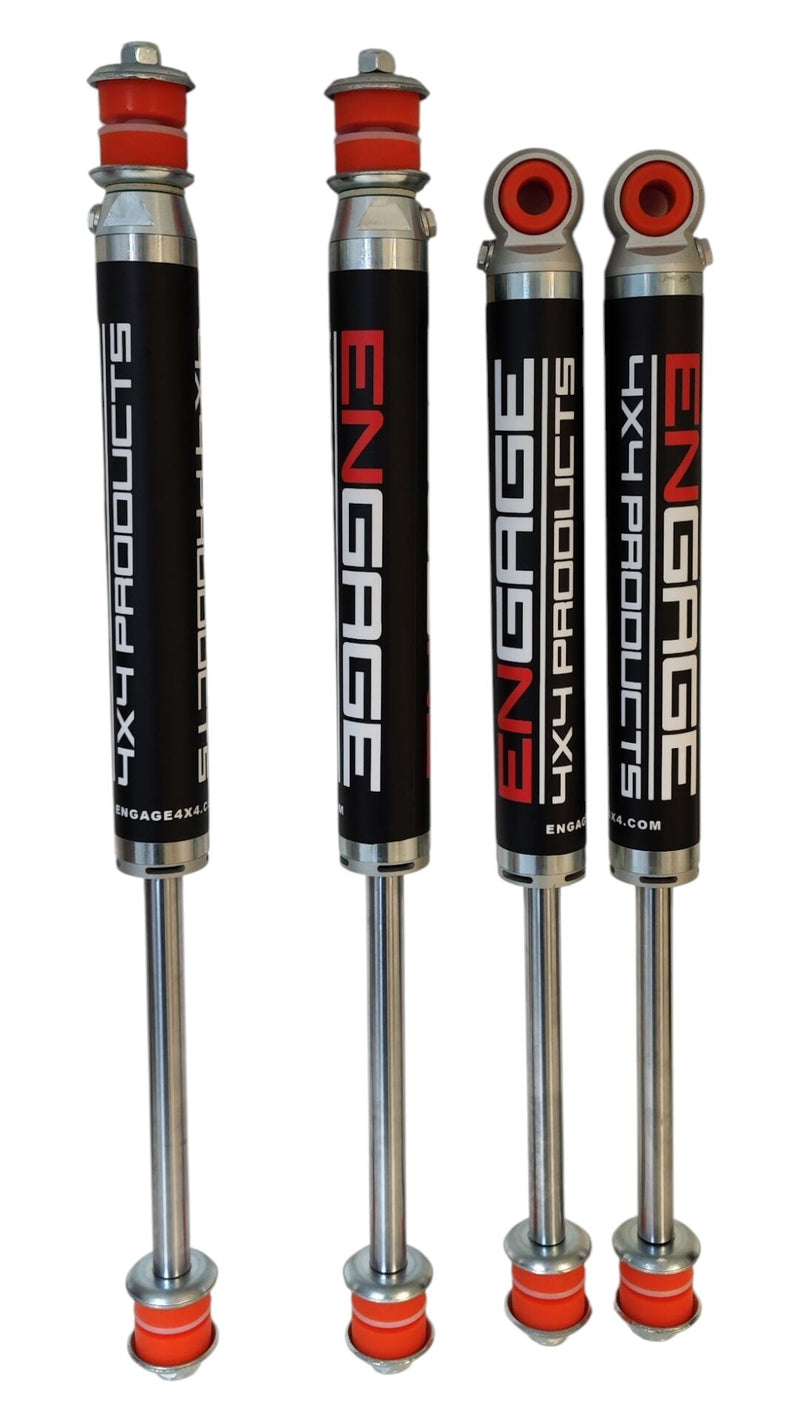

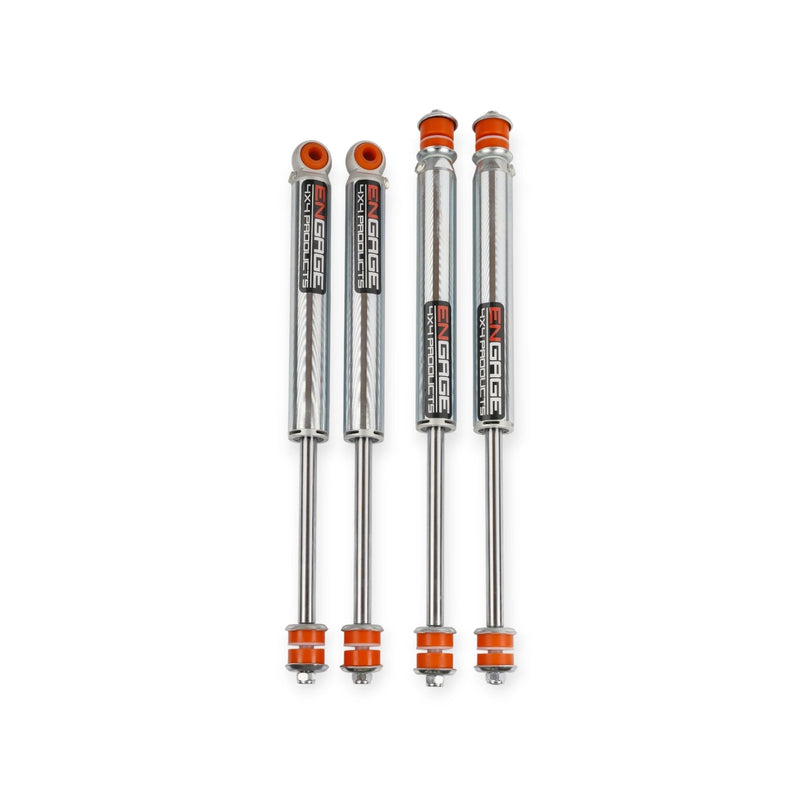

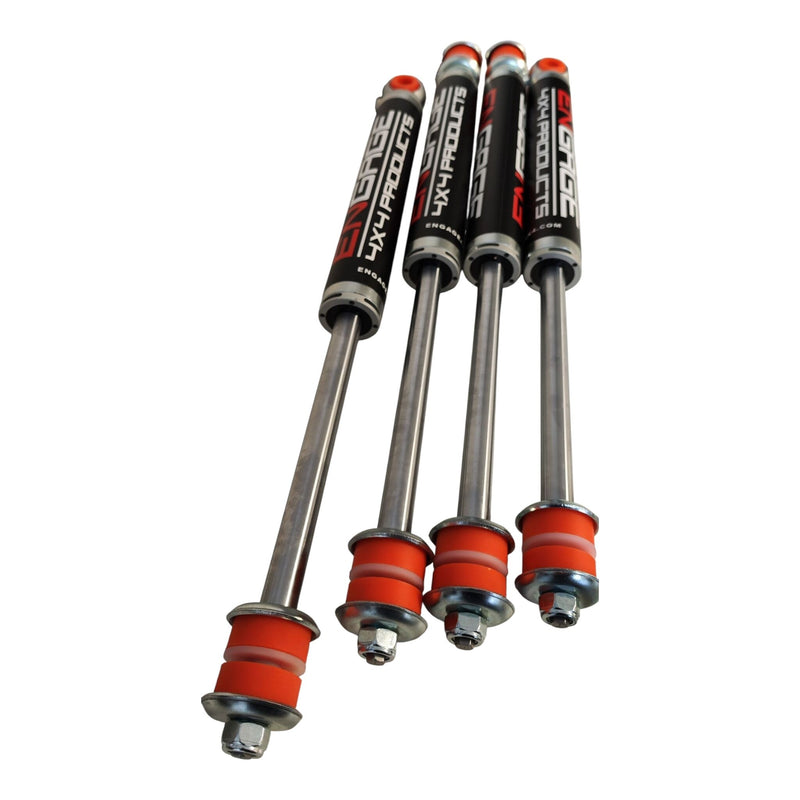

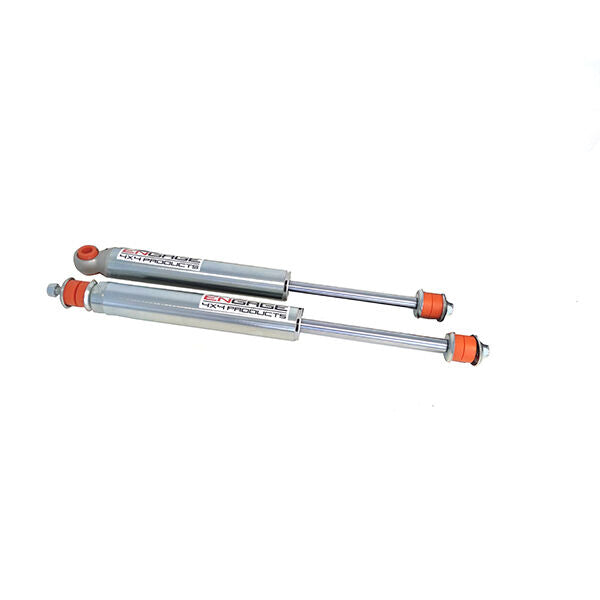

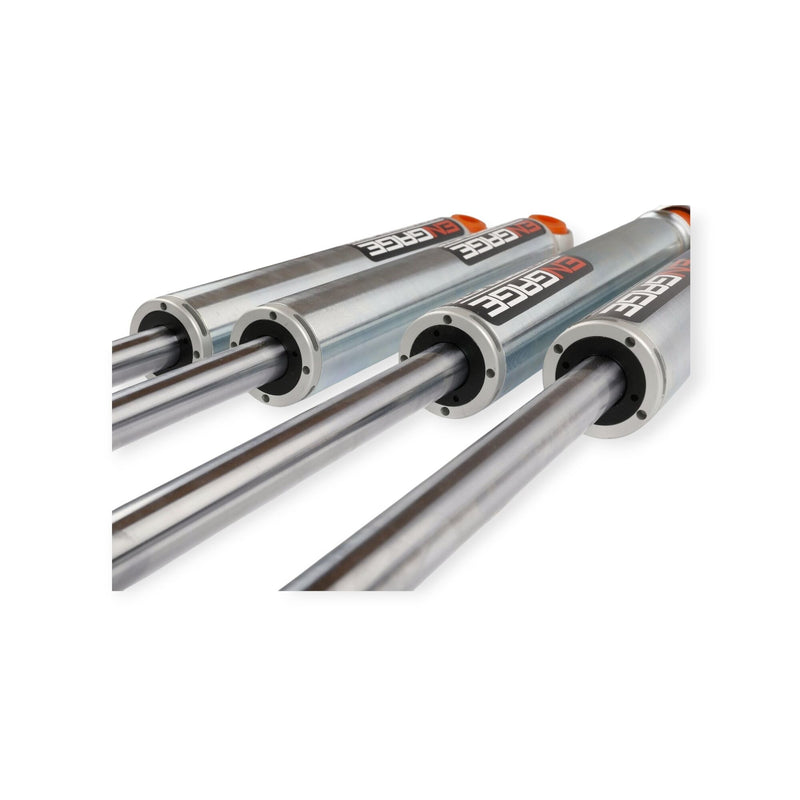

ENGAGE4X4 high-performance shock absorber set Step 1

ENGAGE4X4 high performance shock absorbers Step 1 for Land Rover

The ENGAGE4X4 high-performance shock absorbers Step 1 are among the most powerful off-road shock absorbers for Land Rover. Developed for the highest loads and extreme operating conditions, they are designed to be around 80% stronger than conventional monotube or twin-tube shock absorbers.

ENGAGE4X4 stands for uncompromising technology, maximum durability and real off-road experience. These shock absorbers are not an off-the-shelf accessory, but a professional suspension component for drivers who really use their Defender, Discovery or Range Rover Classic.

High-performance off-road shock absorbers for extreme requirements

The ENGAGE4X4 Step 1 shock absorbers have been specially developed for off-road, expedition and work applications. They offer a significantly higher thermal load capacity, controlled damping even under continuous stress and stable driving behavior under high loads or in difficult terrain.

Thanks to the reinforced design, these dampers are ideal for vehicles with:

• Lifting

• additional weight

• winches, roof racks or protection systems

• Permanent off-road use

Fully revisable and individually adjustable

ENGAGE4X4 high-performance dampers are fully rebuildable and can be adjusted to different spring rates and individual requirements. This makes them suitable for both standard vehicles and heavily modified Defender projects.

Special protection for maximum service life

The rear shock absorbers are equipped with a special bronze dust cap. This reliably prevents the ingress of dust, sand and mud and protects the oil seal even under extreme off-road conditions. The result is a significantly longer service life and constant damping performance.

Precision manufacturing and high-quality materials

All components of the ENGAGE4X4 high-performance shock absorbers are manufactured from high-quality materials and CNC-machined with precision. This guarantees consistent quality, high load capacity and reliable performance even under extreme conditions.

Technical specifications

• Design: monotube shock absorber

• Piston: 46 mm

• Piston rod: 22 mm

• Oil: High-performance oil OR-Special

• Gas: Nitrogen 5.0

• Pressure: Standard 9 bar

• Fillable: min. 5 bar to max. 22 bar depending on setting

• Scope of delivery: 1x set (2 VA / 2x HA)

Materials used

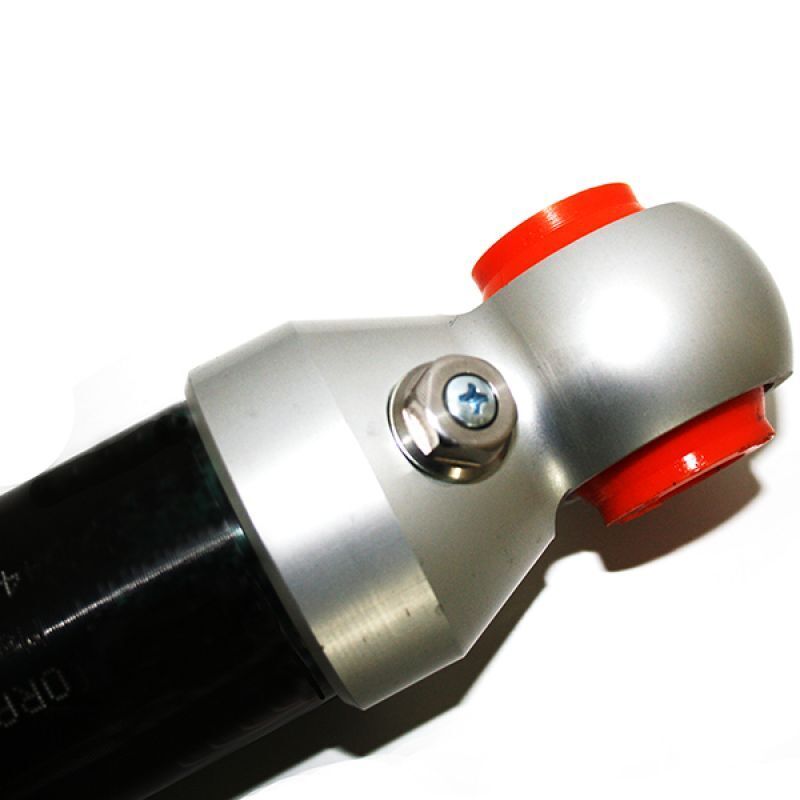

• Eye: Fortal 7075

• Piston: ETG100

• Piston rod: 20MnCR4, highly polished

• Damper body: Precision steel tube, milled

Areas of application for ENGAGE4X4 shock absorbers

The ENGAGE4X4 Step 1 high-performance shock absorbers are designed for:

• Off-road and trail

• Trophy applications

• Work applications and commercial vehicles

• Protected vehicles

• Expeditions and long distance travel

Suitable for the following Land Rover models

• Land Rover Defender

• Land Rover Discovery 1

• Range Rover Classic
