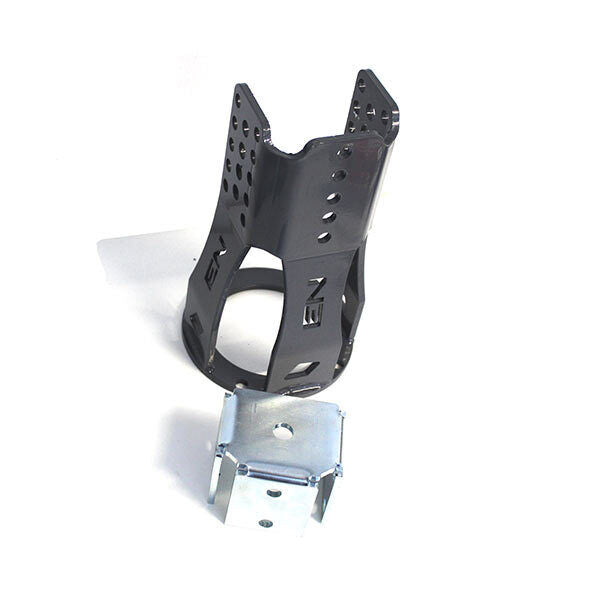

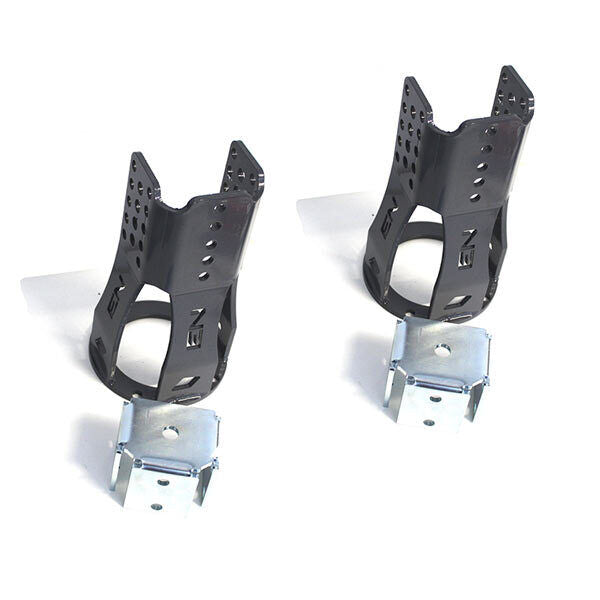

Height-adjustable ENGAGE4X4 damper domes for the Defender front axle
The height-adjustable ENGAGE4X4 damper domes for the Land Rover Defender front axle offer maximum flexibility when tuning the suspension and shock absorbers. They allow, for example, the combination of higher springs with shock absorbers in standard length or vice versa. This creates significantly more scope for individual suspension concepts - especially for conversions for off-road, expedition or trophy use.
The axle articulation can be specifically optimized, especially with progressive springs with coil dampers on the front axle. The working range of the shock absorber can be precisely adjusted thanks to the adjustable position of the damper dome. This prevents the damper from blocking too early or the suspension travel from being fully utilized.
Maximum adaptability for every suspension setup
The ENGAGE4X4 damper domes manufactured in the EU can be raised by 50 millimetres and lowered by up to 100 millimetres as required. This means that the optimum compromise between articulation, suspension travel and spring preload can be set for almost any spring and shock absorber combination.
The adjustable damper domes offer a practical solution, especially for vehicles whose exact suspension travel cannot be determined in advance. They are indispensable when the suspension range needs to be adjusted at short notice or shock absorbers of a different length need to be installed. They also provide the necessary technical reserve for experimental setups or changing applications.
High-quality materials and robust workmanship
The damper domes are manufactured from 6 millimeter thick, high-strength S355 steel. The components are welded using TIG technology and then galvanized and coated with a resistant polyester powder coating. This combination ensures high corrosion resistance and provides reliable protection against the effects of weather, chemicals, stone chipping and abrasion.
Components on the front axle are exposed to extreme loads, particularly in the off-road sector. Mud, water, road salt and mechanical stress demand durable materials. ENGAGE4X4 damper domes are designed precisely for these requirements.
Technical scope without compromise
With the height-adjustable damper domes, longer shock absorbers than originally intended can also be installed without losing the spring preload. It is also possible to use shorter shock absorbers without restricting the effective spring travel. This results in a precise balance between compression and rebound movement.
The aim is always to achieve the optimum compromise between maximum articulation off-road and stable road holding in everyday use. The ENGAGE4X4 damper domes provide the necessary technical basis for this and significantly extend the adjustment range of the Defender suspension.
They are therefore a useful addition for ambitious Defender conversions if an individual, resilient and flexibly adjustable suspension concept is to be realized.
- Manufactured in the EU
- Material S355 high-strength steel
- EPS powder-coated surface
- Height adjustable
